Sensor setup

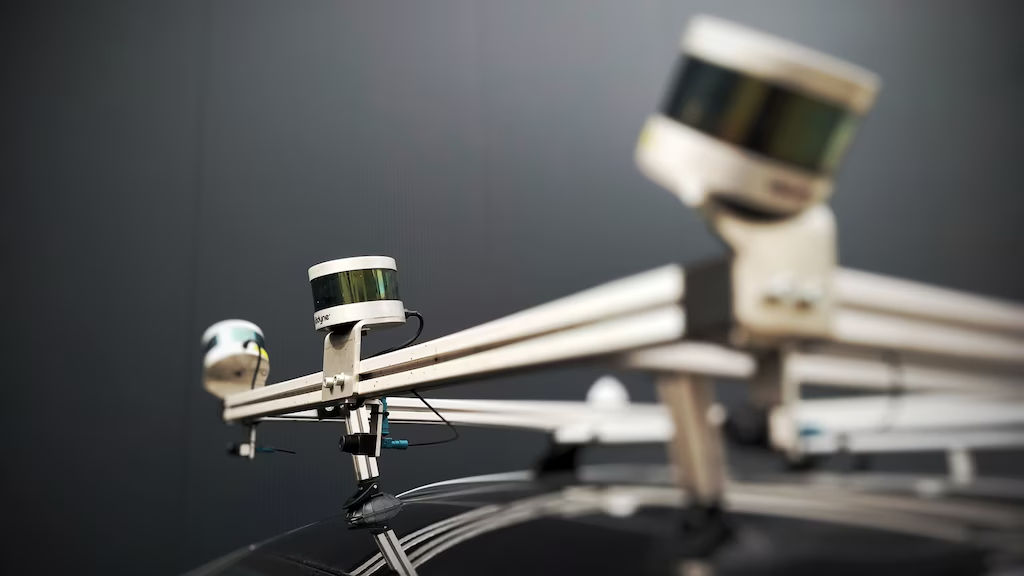

Our sensor suite consists of six cameras, five LiDAR sensors, and an automotive gateway for recording bus data. This configuration provides 360° coverage of the environment with camera and LiDAR. The bus data give information about vehicle state and driver control input.

Sensors

Other hardware

Our vehicle is equipped with additional hardware for recording data from the sensor suite and vehicle bus. The cameras are connected to an embedded computer via LVDS, while the LiDAR sensors are connected via a 1G-Ethernet switch. Each LiDAR sensor is connected to a GNSS receiver which acts as a clock. A further GNSS clock serves as a time master for the gateway and embedded computer. The bus gateway connects to the embedded computer via 1G-Ethernet. All data is stored on a crash-safe network storage device, equipped with 48 TB of SSD storage, and accessed via 10G-Ethernet.

Sensor synchronization

All sensor signals are timestamped in UTC format. Camera images are timestamped when they arrive at the embedded computer, which is synchronised to the time master. Bus data are timestamped at the gateway, which is also synchronised to the time master. LiDAR signals are timestamped at the sensors, which get their time from GNSS.



Calibration



LiDAR-to-Vehicle



The LiDAR sensor pose relative to the vehicle is determined by direct measurement of positions and orientation when mounted on the vehicle.



Camera-to-Vehicle

Camera poses with respect to the vehicle are determined by direct in-situ measurements of position and orientation.



LiDAR-to-LiDAR optimization

We use one LiDAR as a reference and initialise the other LiDAR sensor poses to their measured positions and orientations. Next, an Iterative Closest Point algorithm is used to refine the poses of the other LiDAR sensors within the vehicle coordinate system. This registration uses a recording of a static environment with a static ego vehicle and does not require any fiducial targets.



Camera-to-LiDAR optimization

The camera poses are optimized using camera and LiDAR recordings of fiducial targets (e.g. checkerboards). Additionally a low speed driving scene is used to improve calibration of sensor orientation. This process uses features (e.g. edges) in camera and LiDAR data to optimize relative poses.
